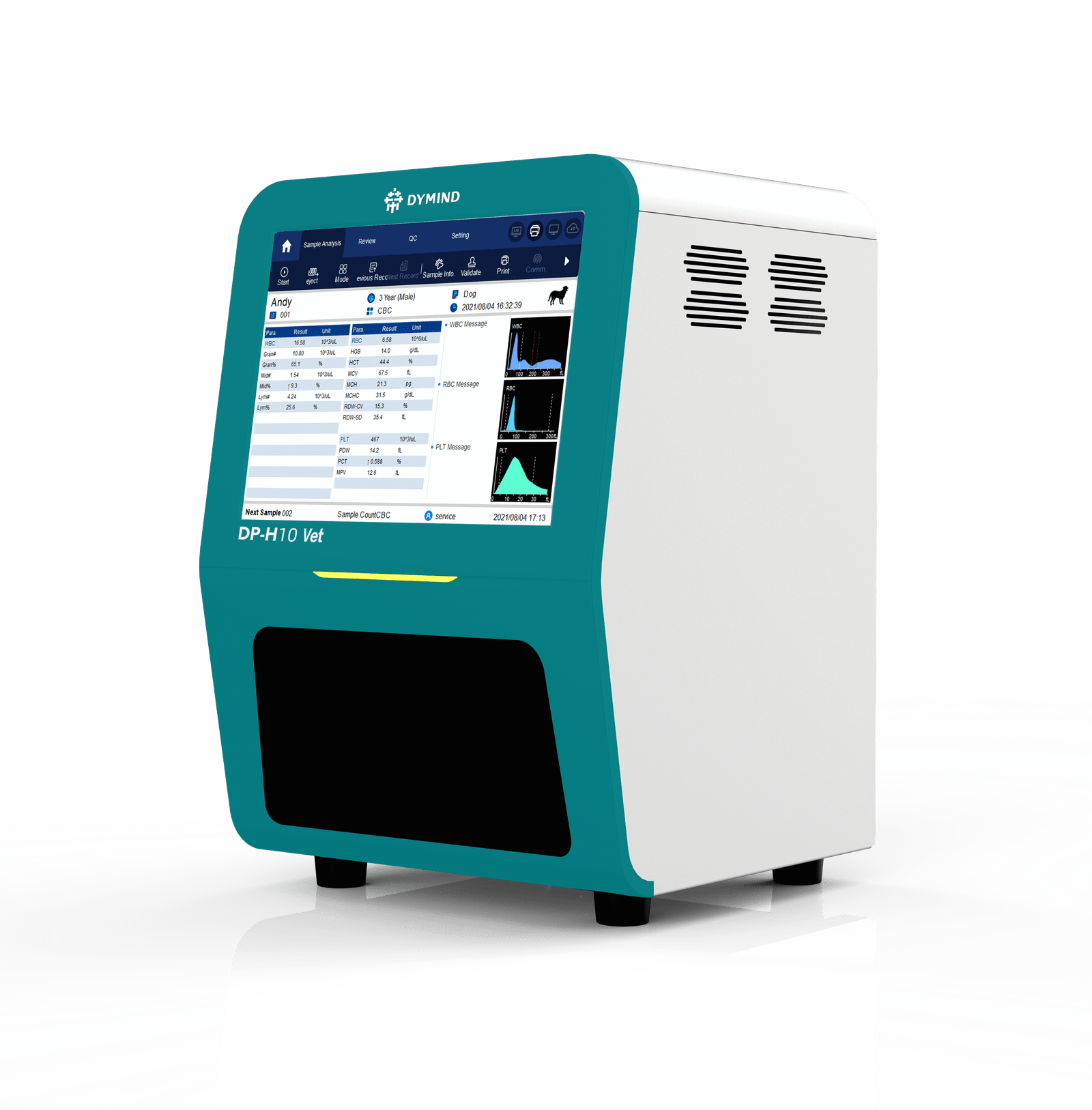

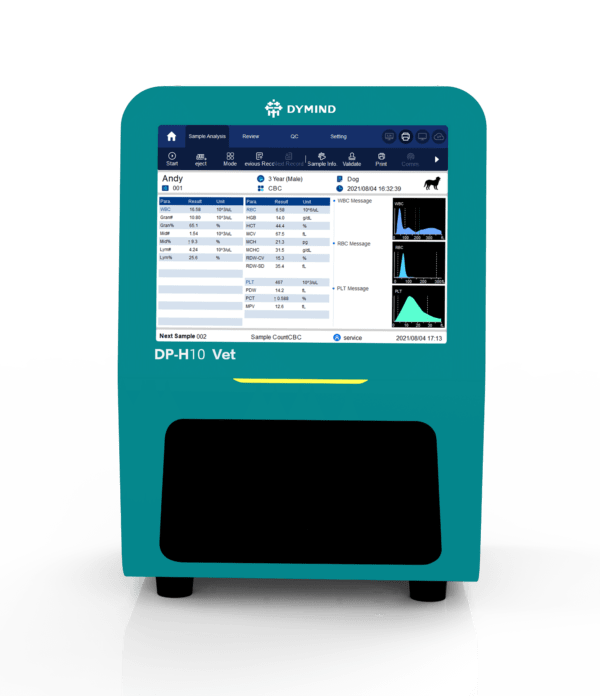

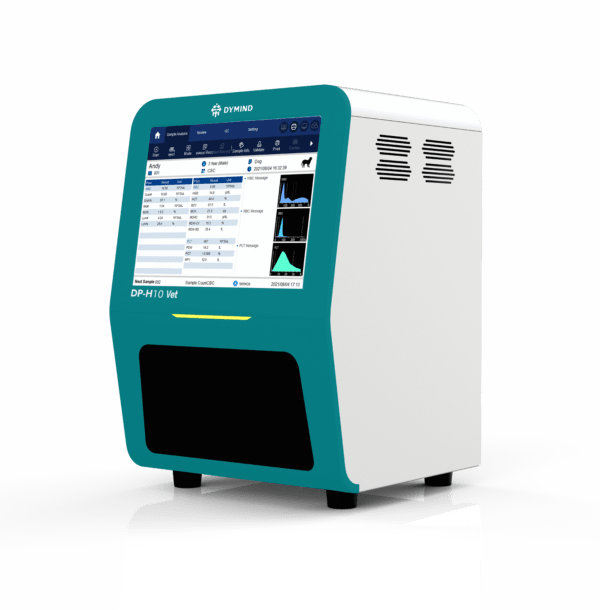

DP H10 Vet Veterinary Hematology Analyser
Fast, practical CBC testing at the point of care — with optional CRP or SAA capability.
Bring essential hematology testing closer to the patient with the DP H10 Vet. Designed as a compact point-of-care veterinary hematology analyser, it provides a 3-part CBC profile and can be configured for CBC+CRP or CBC+SAA testing. Its compact footprint, touchscreen workflow, built-in printer and high result-storage capacity make it suited to everyday veterinary practice.
Four-Point Value Proposition
3-PART CBC
21 hematology parameters with comprehensive WBC, RBC and platelet indices.
CBC + CRP / SAA
Choose CRP or SAA testing modes where clinically appropriate for acute inflammation.
COMPACT DESIGN
270 × 390 × 300 mm; ≤13 kg. Fits seamlessly into any clinic laboratory space.
LOCAL BIODX SUPPORT
Australian veterinary diagnostics support, training, and ongoing consumable delivery.
Designed for Diverse Veterinary Practices
Tailored functionality for varied clinical workflows across Australia.
Small Animal Clinics
Routine CBC testing for dogs and cats, wellness screening, and rapid pre-anesthetic work-ups.
Mixed Practices
Compact in-house hematology platform suited for practices managing companion and livestock caseloads.
Rural & Regional Clinics
Practical independence where external laboratory logistics cause critical diagnostic delays.
Veterinary Urgent Care
Rapid access to quantitative diagnostic data during initial patient triage and acute emergency visits.
Animal Shelters
Efficient high-volume baseline health screening for rescue organizations and welfare groups.
What Is the DP H10 Vet?
The DP H10 Vet is an automatic veterinary hematology analyser designed for point-of-care use. The DP H10 Vet for veterinary urgent care, small clinics, rural clinics and pet shelters. The platform supports CBC, CBC+CRP and CBC+SAA test modes.
BIODX positioning
BIODX can position the DP H10 Vet as a practical in-clinic testing solution for Australian practices that want faster access to hematology information without relying on an external laboratory for every routine CBC decision.
Comprehensive Diagnostic Parameters
Precise, actionable 3-part WBC differential plus optional acute-phase protein detection.
21-Parameter 3-Part CBC
WBC Parameters (White Blood Cells):
WBC, Gran%, Lym%, Mid%, Gran#, Lym#, Mid#
RBC Parameters (Red Blood Cells):
RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD
Platelets (PLT):
PLT, MPV, PDW, PCT, P-LCR and P-LCC*
Optional Specific-Protein Modes
Clinical Value — Turn Numbers Into Decisions
Objective data points designed to enhance point-of-care patient assessment.
Inflammation & Infection Assessment
WBC differentials and inflammatory markers contribute to the rapid assessment of systemic infectious or inflammatory processes alongside patient history.
Anemia Characterisation
Comprehensive RBC, HGB, HCT, and red-cell indices (MCV, MCH, RDW) help classify anemia to direct further diagnostic investigations.
Platelet Evaluation
Quantitative PLT counts and platelet indices provide crucial clinical context when assessing primary hemostasis or clotting risks.
Treatment Monitoring
Serial in-house CBC testing allows clinicians to evaluate response to treatment, recovery progression, or ongoing disease management in real-time.
Simple & Efficient In-Clinic Workflow
Designed for immediate execution by clinical staff with minimal hands-on time.
Sample Collection
Collect appropriate venous whole-blood sample according to standard lab procedures.
Mode Selection
Select required mode on screen: CBC, CBC+CRP, or CBC+SAA.
Process Sample
Load and process sample automatically using simple touchscreen prompts.
Review Results
Review quantitative values & 3 histograms on 10.4-inch display.
Print & Export
Print via thermal printer or auto-transmit directly to practice LIS/HIS.
Single-Use Package Reagent
The DP H10 Vet utilizes single-use reagent packaging—a major advantage for busy clinics. This provides a simpler consumables workflow, eliminates liquid reagent waste, reduces handling of bulk reagent containers, and maintains a cleaner day-to-day testing environment.
BIODX Australia — Your Local Support Partner
The analyser is only part of the solution. BIODX supports you with local veterinary diagnostics expertise, product guidance, operational training, and ongoing consumables support.
• Local product guidance and application specialist support
• On-site installation, clinical setup, and staff training options
• Reliable national reagent and consumables dispatch
Technical Specifications
| Product | DP-H10 Vet Automatic Hematology Analyzer |
|---|---|
| Sample type | Venous whole blood |
| Principles | Electrical impedance; cyanide-free colorimetric method; immune nephelometry method |
| Test modes | CBC; CBC+CRP; CBC+SAA |
| Throughput | CBC: up to 10 tests/hour; CBC+CRP/SAA: up to 9 tests/hour |
| Display | 10.4-inch TFT touchscreen |
| Printer | Built-in thermal printer; external printer optionally supported |
| Connectivity | 4 USB ports; 1 LAN port; bi-directional LIS/HIS |
| Storage | Up to 100,000 test results |
| Dimensions | 270 mm W × 390 mm H × 300 mm D |
| Weight | ≤13 kg |
Bring CBC Testing Closer to Your Patients
Talk to BIODX about the DP H10 Vet and find out whether it fits your practice, caseload, and testing workflow.
