ONE IMMUNOASSAY ANALYSER. MULTIPLE SPECIES. MORE DIAGNOSTIC POSSIBILITIES.

Bring important quantitative immunoassay testing into your equine or mixed veterinary practice. From equine ACTH, insulin, SAA and Foal IgG to small-animal endocrine, cardiac and renal markers, discover a versatile diagnostic platform Exclusively Distributed by BIODX Australia.

60+ test items
10 μL - 75 μL Sample
Results- 3 to 15 minutes

One FIA Platform - Multiple Veterinary Applications

The HV-FIA 3000 is a veterinary immunofluorescence quantitative analyser designed to support a broad range of diagnostic applications. Its menu includes tests for companion animals as well as key equine applications, making it relevant to small-animal, equine and mixed veterinary practices. Who Is This FIA Analyser For?

Small-Animal Hospitals

Expand in-house immunoassay capability for selected renal, inflammatory, cardiac, endocrine, pancreatic and infectious-disease applications.

Equine Practices

Access a focused menu including SAA, ACTH, insulin, Foal IgG and progesterone.

Mixed Animal Practices

Use a common platform across companion-animal and equine workflows.

Dog Breeders

Add a compact analyser to a broader in-house diagnostic environment.

Equine Studs & Breeders

Explore practical on-site testing options for selected reproductive, inflammatory and foal-health applications.

Veterinary Diagnostic Laboratories

Expand your in-house quantitative immunoassay capability for specialised veterinary diagnostic workflows.

Advanced Fluorescence Immunoassay - Made Practical

The HV-FIA 3000 uses fluorescence immunoassay technology with a guided testing workflow. Depending on the assay, the required sample is prepared with the supplied test system, loaded into the test cartridge and placed into the analyser for measurement.

Prepare
1
Prepare

Prepare the specimen according to the individual assay instructions

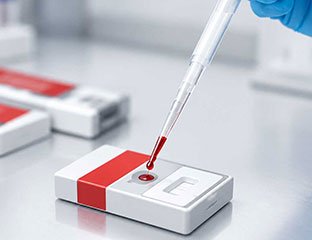

Load
2
Load

Read the test information/ID card where applicable, prepare the sample-buffer mixture and load the specified volume into the cartridge.

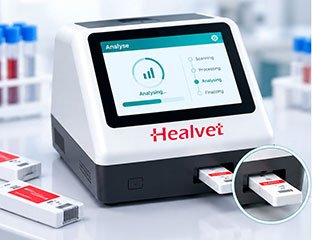

Analyse
3
Analyse

Insert the cartridge into the analyser and start the test.

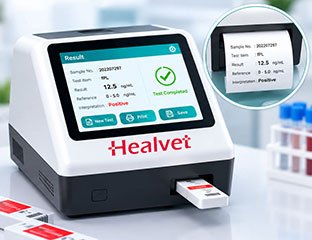

Result
4
Result

The analyser displays the result after the assay-specific testing period and can print the result.

More Than a Positive or Negative Result

For selected assays, instrument-based quantitative or objective result interpretation can provide a numerical measurement rather than relying solely on visual interpretation.
This can be useful when the clinician needs to assess a biomarker, monitor change over time or combine the result with the patient’s history and other clinical findings.

⟶ Objective measurement

⟶ Faster access

⟶ Better-informed clinical conversations

A Broad Test Menu for Everyday Veterinary Medicine

Small Animal Test — by Clinical Problem

Renal Function

SDMA cCys-C fCys-C

Support selected renal-function and pre-anaesthetic assessment workflows.

Inflammation

Support assessment and monitoring of inflammatory conditions.

Cardiac

Support selected cardiac assessment workflows.

Endocrine & Hormones

Support selected thyroid, adrenal and reproductive assessments.

Diabetes

Support longer-term glycaemic assessment and monitoring.

Pancreas

Support pancreatic assessment where clinically indicated.

Thrombus / Coagulation

Support selected thrombosis and coagulation assessment workflows.

Infectious Diseases

CPV Ag CDV Ag CCV Ag FPV Ag FCoV Ag FHV Ag FCAV Ag FeLV Ag FIV Ab and others

Support selected infectious-disease workflows.

Tick-Borne Diseases

EHR Ab LYM Ab ANA Ab Babesia Ab

Support selected tick-borne disease testing.

Vaccine Check

CDV/CPV/ICH Ab FHV/FCAV/FPV Ab RV Ab CPIV Ab Lepto Ab

Support selected antibody/vaccine-check applications.

Cancer and Other Markers

CPSE cAFP 25(OH)D3 CG

Specialised applications listed in the supplied menu.

Complete Test Menu by Species

Canine Test

  • T4
  • cCRP
  • ccTnI
  • cNT-proBNP
  • cNT-proBNP
  • ccTnI
  • cProg
  • Cortisol
  • TSH
  • C-RLN
  • cHbA1c
  • D-dimer
  • SDMA
  • cPL
  • cCys C
  • infectious disease assays
  • vaccine checks
  • tick-disease assays
  • CPSE
  • cAFP and other listed applications.

Feline Test

  • fcTnI
  • fNT-proBNP
  • fNT-proBNP & fcTnI
  • Cortisol
  • Feline T4
  • TSH
  • fHbA1c
  • fPL
  • fCys C
  • D-dimer
  • SDMA
  • 25(OH)D3, CG
  • infectious disease assays
  • vaccine checks and other listed applications.

Equine Test

  • eSAA
  • eProg
  • Foal IgG
  • eACTH
  • eINS

Bovine Test

  • PAG

Local Veterinary Support. Global Diagnostic Technology

BIODX Australia provides veterinary diagnostic solutions for practices looking to expand practical point-of-care testing. Our focus is not simply supplying an analyser — it is helping veterinary professionals understand where the technology can fit into real clinical workflows.

Australian veterinary diagnostics focus
Small-animal and equine applications
Practical support for product selection and implementation
Access to a broader veterinary point-of-care diagnostic portfolio
Local Australian contact and support
TALK TO BIODX

Specifications

Specification HV-FIA 3000
Model HV-FIA 3000
Test principle Fluorescence Immunoassay
System Android
Display 7-inch colour touchscreen
Dimensions Approx. 210 × 240 × 195 mm
Weight 2.5 kg
Power 100–240 V, 50–60 Hz
Languages 10+
Throughput >180 tests/hour in manufacturer Quick Mode
Test time Approximately 3–15 minutes depending on assay
Sample volume 10 μL or 75 μL depending on assay
Printer Built-in thermal printer; wireless A4 printing stated in brochure

Everything You Need to Get Started

A standard order includes the analyser unit, pipettes, power cord, manual, quick user guide and warranty. Optional start-up accessories include a centrifuge, tube stand, pipette tip stand, blood collection tubes (EDTA, Plain serum, lithium heparin) and pipette tips.

Frequently Asked Questions

What is a veterinary immunoassay analyser? +

A veterinary immunoassay analyser is a diagnostic instrument designed to process compatible immunoassay tests. These assays use antibody-based reactions to detect or measure a target in a sample, such as a biomarker, hormone, antigen or antibody.


Some veterinary immunoassay analysers use fluorescence immunoassay technology. In a typical workflow, a prepared sample is applied to a test cartridge or other assay format, then read by the instrument. The analyser displays or prints a result according to the test system.


The term immunoassay analyser covers different platforms and assay menus. Products can vary in:


•          Test principle and compatible assay formats

•          Species and biomarkers supported

•          Sample types and sample volumes

•          Preparation steps and test times

•          Result type and reporting options

•          Connectivity, printing and data-handling features

•          Training, service, consumables and supply arrangements


For those reasons, compare an analyser against the actual tests and workflows your practice needs.

Check Price

or

contact BIODX

Who are veterinary immunoassay analysers for? +

Small-animal veterinary clinics


vestigate in-house immunoassay testing for selected applications such as inflammatory markers, cardiac biomarkers, endocrine assessment, renal markers, pancreatic testing or infectious-disease assays. The relevant menu depends on the analyser and the assays supplied for the Australian market.


Equine veterinary practices

Equine teams may consider analysers that support selected equine assays, such as inflammatory, endocrine, reproductive or neonatal tests. Check for the current equine test list, sample requirements and clinical documentation before selecting a platform.


Mixed-animal practices

Practices treating companion animals and horses may want to assess whether one analyser can support more than one species.


Veterinary diagnostic laboratories

A laboratory may assess an immunoassay analyser for selected in-house or point-of-care workflows. Review the assay documentation, throughput, quality procedures, information systems and reporting requirements as part of the evaluation.


Veterinary hospitals

Hospitals may have specific use cases where access to a compatible test within the clinic could support a diagnostic workflow. The analyser remains one element of a broader clinical assessment.


Check Price

or

contact BIODX

When is an immunoassay analyser used? +

A veterinary team may use an immunoassay analyser when a compatible assay is relevant to a clinical question and the practice has decided that in-house testing fits its diagnostic workflow. Use cases vary by test and species.


Examples of application areas across veterinary immunoassay platforms can include:

• Inflammatory markers

• Cardiac biomarkers

• Hormones and endocrine testing

• Renal biomarkers

• Pancreatic markers

• Diabetes monitoring

• Selected infectious-disease tests

• Reproductive and neonatal testing

• Selected coagulation-related markers


Check Price

or

contact BIODX

How does a veterinary immunoassay analyser work? +

The detailed procedure depends on the platform and assay. A common cartridge-based workflow includes the following stages:


1. Select the appropriate assay


Choose a test compatible with the immunoassay analyser and relevant to the clinical question. Check species, specimen type, required volume, storage and handling instructions.


2. Collect and prepare the sample

Collect the sample using the assay’s instructions. Some tests may require separation, dilution or mixing with a supplied buffer. Do not assume that one sample procedure applies across the whole menu.


3. Prepare the test device

Open and prepare the cartridge or test device as directed. Some systems use a test-specific information card, barcode or calibration data.


4. Apply the sample and start the run

Load the specified sample volume and place the test device into the analyser. Select the assay, then start the run according to the user guide.


5. Review and record the result

The analyser reports a result after the assay-specific run time. Follow the system instructions for printing, exporting or recording the result. Interpret it within the patient’s clinical context.


6. Follow quality and maintenance procedures

Use the BIODX instructions for quality control, cleaning, storage, software and troubleshooting. Requirements differ between instruments and assays.


Check Price

or

contact BIODX

What does a veterinary immunoassay analyser test for? +

Depending on the platform and assay menu, it may support selected inflammatory, cardiac, endocrine, renal, pancreatic, infectious-disease, reproductive or neonatal tests.

immunoassay analyser

What is a veterinary fluorescence immunoassay analyser? +

A fluorescence immunoassay analyser uses a fluorescence-based measurement as part of a compatible immunoassay analyser system. The test cartridge or assay and its instructions determine the sample procedure and result format.

Check Price

or

contact BIODX

Can a point of care veterinary immunoassay analyser be used in a small-animal clinic? +

YES, point of care veterinary immunoassay analyser used in a small-animal clinic if the analyser has compatible assays for the species and applications the clinic needs.

Check Price

or

contact BIODX

Are veterinary immunoassay analysers suitable for equine practices? +

YES, immunoassay analysers suitable for equine practices. Ask for the current equine menu, species-specific assay instructions, sample requirements and evidence for the intended clinical use.

Check Price

or

contact BIODX

Can one analyser support dogs, cats and horses? +

YES, one analyser support dogs, cats and horses, but that does not mean every assay applies to every species.

Check Price

or

contact BIODX

How long does a veterinary immunoassay test take? +

The time varies by immunoassay analyser and assay. Check the product specifications for the instrument run time and allow additional time for collecting, preparing, reviewing and recording the result.

Check Price

or

contact BIODX

What sample types do veterinary immunoassay analysers use? +

Sample types vary by assay and may include serum, plasma or whole blood. Follow the assay’s instructions because sample type and handling can affect whether a test is suitable.

Check Price

or

contact BIODX

What is point-of-care veterinary testing? +

Point-of-care testing is performed close to where patient care is provided, rather than sending every sample to an external laboratory. Whether a particular analyser fits this model depends on its workflow and the practice’s needs.

Check Price

or

contact BIODX

What should I compare before choosing an analyser? +

Compare the specific test menu, supported species, sample requirements, run times, result formats, workflow, quality procedures, total operating costs, supply and Australian support.

Check Price

or

contact BIODX

Which equine tests are listed for the HV-FIA 3000? +

The BIODX lists equine serum amyloid A, ACTH, insulin, Foal IgG and progesterone. Each assay has its own sample and workflow requirements.

Check Price

or

contact BIODX

Can a mixed veterinary practice use the HV-FIA 3000? +

The BIODX listed menu includes companion-animal, equine and bovine applications. A practice should confirm which relevant assays are available locally.

Check Price

or

contact BIODX

Can the analyser test dogs and cats? +

Yes. BIODX lists canine and feline assays across areas including inflammatory, cardiac, renal, endocrine, pancreatic and infectious-disease testing. The exact menu varies by assay and availability.

contact BIODX

Can the HV-FIA 3000 measure inflammatory markers? +

The menu includes canine CRP, feline SAA and equine SAA. Confirm the specific assay’s sample requirements and intended use.

contact BIODX

Can it test cardiac markers? +

The lists canine and feline NT-proBNP and cardiac troponin I assays. Check current availability and species-specific instructions with BIODX.

contact BIODX

What veterinary cardiac biomarker analyser can clinics use for in-house testing? +

The BIODX Advanced Fluorescence Immunoassay supports selected canine and feline cardiac biomarker assays, including NT-proBNP and cardiac troponin I. Confirm the current Australian assay menu and availability with BIODX before purchase.

contact BIODX

Where can I find an equine ACTH analyser in Australia? +

BIODX Advanced Fluorescence Immunoassay for equine ACTH testing.

contact BIODX

Australia to confirm current eACTH assay availability, sample requirements and supply arrangements.

Where can I find an equine insulin testing analyser in Australia? +

BIODX lists equine insulin (eINS) among the Advanced Fluorescence Immunoassay equine applications.

Ask BIODX to confirm Australian availability and the assay’s instructions before planning your workflow.

How can a veterinary clinic perform onsite NT-proBNP testing? +

A clinic can use a compatible veterinary analyser and species-specific NT-proBNP assay. BIODX lists canine and feline NT-proBNP assays for the Advanced Fluorescence Immunoassay. The team must follow that assay’s sample and handling instructions, then have a veterinarian interpret the result in clinical context.

contact BIODX

Is there a veterinary analyser for T4 and TSH testing? +

The Advanced Fluorescence Immunoassay menu lists T4 and TSH applications. Confirm which species-specific assays are currently available in Australia and check their instructions for use with BIODX.

contact BIODX

Can veterinary clinics perform point-of-care cortisol testing? +

The Advanced Fluorescence Immunoassay menu lists cortisol testing. Contact BIODX to confirm the relevant assay’s availability, species applicability and sample requirements.

contact BIODX

What veterinary analyser can test inflammatory biomarkers? +

The Advanced Fluorescence Immunoassay supports listed inflammatory marker applications including canine CRP, feline SAA and equine SAA. Availability and sample procedures vary by assay.

contact BIODX

Is there an immunoassay analyser for both small-animal and equine testing? +

Yes. BIODX Advanced Fluorescence Immunoassay as a multi-application platform with listed companion-animal and equine tests. Ask BIODX which assays are currently supplied in Australia.

contact BIODX

What veterinary fluorescence analyser is suitable for clinic use? +

The HV-FIA 3000 is a veterinary fluorescence immunoassay analyser intended for selected in-house testing workflows. Suitability depends on the clinic’s required assays, species, sample handling, test volume and support needs.

contact BIODX

What tests can a veterinary immunoassay analyser perform? +

The test menu depends on the analyser and compatible assays. The Advanced Fluorescence Immunoassay applications include selected inflammatory, cardiac, renal, endocrine, pancreatic, diabetes, infectious-disease, equine reproductive and neonatal tests, as well as bovine pregnancy testing. Confirm current Australian availability with BIODX.

contact BIODX

Can an immunoassay analyser test equine ACTH? +

The Advanced Fluorescence Immunoassay equine menu includes eACTH. Confirm availability and follow the specific assay instructions for sample collection, handling and interpretation.

contact BIODX

Can a veterinary clinic test NT-proBNP onsite? +

Yes, if the clinic has a compatible analyser and the appropriate assay. BIODX lists canine and feline NT-proBNP tests for the Advanced Fluorescence Immunoassay. Check the current Australian menu with BIODX.

contact BIODX

What is fluorescence immunoassay in veterinary medicine? +

Fluorescence immunoassay is a test method that uses a fluorescence signal to measure or detect a target in a sample. In veterinary practice, compatible analyser-and-assay systems can support selected biomarker testing. Each assay has its own procedure and limitations.

contact BIODX

What analyser can test equine insulin? +

The Advanced Fluorescence Immunoassay by BIODX with an equine insulin assay, eINS.

contact BIODX to confirm current supply, sample requirements and test documentation.

What analyser is used for veterinary hormone testing? +

The Advanced Fluorescence Immunoassay selected hormone tests, including T4, TSH, cortisol, progesterone, ACTH and insulin applications. Species and assay availability vary, so confirm the exact test menu with BIODX.

contact BIODX

How can I request a quote for a veterinary immunoassay analyser? +

Contact BIODX with your practice location, species, required applications and expected testing volume. Ask for a written

quote that outlines equipment, assays, consumables, freight, warranty and support.

How do I book a demonstration? +

Contact BIODX and specify the analyser or assays you want to review. Include your practice type and the workflows you want

demonstrated so the session can focus on your requirements.

Enquire about this product
