Advanced Veterinary Chemistry. Blood Gas. Critical Care. Coagulation Analyser
A compact, automated veterinary chemistry platform designed to deliver broad diagnostic profiles from just 100 μL of whole blood, serum or plasma.
From routine biochemistry to electrolytes, lactate, pH, critical-care profiles and coagulation testing — bring more diagnostic capability closer to the patient.
Who Is this analyser For?
Who Is the CV5 Chemistry Analyser Designed For?
Small-Animal Hospitals
Routine chemistry, renal/liver profiles, preanaesthetic testing, electrolytes, inflammation and selected critical-care/coagulation applications.
Emergency & Critical Care
Rapid access to chemistry, electrolytes, pH, tCO₂ and lactate within the supported critical-care profile.
Equine Practices
Dedicated equine chemistry profile plus electrolyte parameters.
Mobile Veterinary Services
Its compact design and power-bank capability, as stated in the BIODX specification, may make it relevant to selected mobile or space-constrained applications.
Veterinary Diagnostic Laboratories
The system is also positioned by BIODX for veterinary hospitals, research institutes and laboratory environments.
Breeders / Studs
Practical in-house access to selected chemistry and equine testing workflows.
General Critical Care & Coagulation When Minutes Count
Assess urgent parameters directly in-clinic without referral laboratory delays.
Electrolytes When They Matter Most
Profile: K+ | Na+ | Cl− | tCO₂ | Anion Gap
Evaluate fluid therapy requirements, Addisonian crises, or metabolic shifts with rapid point-of-care precision.
Critical-Care Information
Profile: ALT | CRE | BUN | GLU | K+ | Na+ | Cl− | Ca | P | Mg | tCO₂ | pH | LAC
Essential diagnostic support for collapsed, septic, trauma, or unstable patients.
Coagulation Built Into Menu
Profile: PT | APTT | TT | FIB
In-house screening for pre-surgical risk, rodenticide toxicity, hepatic failure, or unexplained clinical bleeding.
Core Benefit Badges
3-Step Operation Designed for Effortless Clinical Integration
Apply approximately 100 μL of lithium-heparin whole blood, serum, or plasma to the reagent disc sample port.

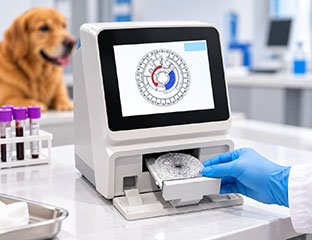

Insert the single-use, self-contained reagent disc. The analyser automatically reads the lot-specific QR code to load calibration parameters and reaction protocols.

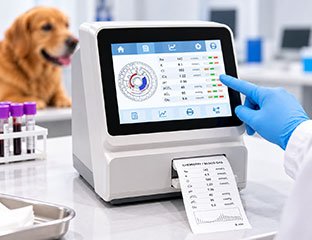

Review complete diagnostic reports on the touchscreen in 8 to 10 minutes, with automated printout and LIS integration.
When You Need More Than Routine Biochemistry
Match clinical patient presentations directly to target CV5 microfluidic reagent disc profiles.
WHEN IS IT USED?
When Is a Veterinary Chemistry Analyser Used?
• Routine wellness testing
• Pre-anaesthetic assessment
• Organ function assessment
• Liver-related testing
• Kidney-related testing
• Electrolyte assessment
• Diabetes-related profiles
• Critical-care testing
• Coagulation profiles
• Species-specific testing
Comprehensive Chemistry for Everyday Veterinary Settings
23 dedicated panel options covering 46 parameters
Comprehensive Diagnostic Profile
Test Items (23)：TP ALB ALT AST GGT ALP TBIL TBA CRE BUN CK AMY GLU CHOL LPS K+ Na+ Cl- Ca P Mg tCO2 LAC
Calculation Items (7)：GLO* ALB/GLO* AST/ALT* BUN/CRE* K+/Na+ Ca×P* AG*
Kidney Profile
Test Items (11)：TP ALB CRE BUN GLU K+ Na+ Cl- Ca P tCO2
Calculation Items (6)：GLO* ALB/GLO* BUN/CRE* Na+/K+* Ca×P* AG*
Liver Profile
Test Items (11)：TP ALB ALT AST GGT ALP BUN CHOL TBIL DBIL TBA
Calculation Items (4)：GLO* ALB/GLO* AST/ALT* IBIL*
Liver & Kidney Profile
Test Items (9)：TP ALB ALT AST GGT TBIL CRE BUN GLU
Calculation Items (4)：GLO* ALB/GLO* AST/ALT* BUN/CRE*
Preanaesthetic Plus Profile
Test Items (9)：TP ALT AST ALP CRE BUN CK LDH GLU
Calculation Items (2)：AST/ALT* BUN/CRE*
Preanaesthetic Profile
Test Items (7)：TP ALB ALT ALP CRE BUN GLU
Calculation Items (3)：GLO* ALB/GLO* BUN/CRE*
Diabetes Profile
Test Items (4)：GLU FRU TG CHOL
Ammonia Profile
Test Items (4)：NH3
Equine Profile
Test Items (15)：TP ALB AST GGT ALP CRE BUN GLU CK LDH TBIL K+ Na+ Ca tCO2
Calculation Items (4)：GLO* ALB/GLO* BUN/CRE* Na+/K+*
Avian & Reptile Profile
Test Items (12)：TP ALB AST TBA UA CK GLU K+ Na+ Cl- Ca P
Calculation Items (4)：GLO* ALB/GLO* Na+/K+* Ca×P*
Large Animal Profile
Test Items (10)：TP ALB AST GGT ALP BUN CK Ca P Mg
Calculation Items (3)：GLO* ALB/GLO* Ca×P*
Canine Inflammation Profile
Test Items (7)：TP ALB GLU AMY LPS Ca cCRP
Calculation Items (2)：GLO* ALB/GLO*
Technical Specifications
| Model | Celercare® CV5 (cV5 / V5) Veterinary Chemistry Analyser |
|---|---|
| Dimensions & Weight | 260 mm (L) × 230 mm (W) × 320 mm (H) | Net weight: 5.5 kg |
| Sample Matrices | Anticoagulant whole blood (lithium-heparin), serum, or plasma |
| Sample Volume Required | 100 μL (approximately 3 drops) |
| Sample volume | 100 μL |
| Testing Run Duration | Approximately 8–10 minutes per rotor profile |
| Display & User Controls | 8.0-inch capacitive color LCD touchscreen |
| Quality Assurance Engine | Built-in real-time rQC® continuous operational control system |
| Internal Data Memory | Stores up to 50,000 patient records and quality control files |
| Data Connectivity | Wi-Fi, USB, Bluetooth; bidirectional LIS integration |
| Thermal Regulation | Thermostatically maintained at 37.0°C ± 0.2°C |
Local Support. Veterinary Focus. Real Diagnostic Capability
YOU BUY THE ANALYSER. BIODX HELPS YOU MAKE IT WORK IN PRACTICE.
Australian Veterinary Supplier
Headquartered in Liverpool, NSW, providing localized customer support and rapid consumable dispatch across Australia.
Application Guidance
Direct assistance selecting test profiles matched to small animal, equine, exotics, or mixed clinical caseloads.
Ongoing Technical Service
Dedicated technical support and account managers to ensure high uptime and long-term diagnostic confidence.
More Diagnostic Capability. Right Where You Need It
From routine chemistry to electrolytes, critical care, blood-gas-related parameters and coagulation, the Celercare CV5 can bring a broader diagnostic menu into your practice workflow.
CHEMISTRY. ELECTROLYTES. CRITICAL CARE. COAGULATION. LOCAL SUPPORT.
