Veterinary Biochemistry Analyser- POCT

High Accuracy, 37 parameters; 16 test panels (24 in 1 disc) Electrolyte; Blood Gas; Biochemistry – All-in-One Analyser- Best Price Consumables

CelecareV5 is Veterinary Biochemistry, Electrolyte, Immunoassay, Coagulation and Blood gas all-in-one analyzer



Celercare V5 is-

Reliable lab-accurate results- fast and reliable results in 7 minutes and offers maximum support for diagnosis and treatment.
Real-time Quality Control- contains a highly efficient integrated quality control system (RQC) that continuously monitors disc function and reagent quality to ensure optimal test performance.

Three simple steps for fast, efficient performance.- Compared to traditional chemistry analysers, the blood chemistry analyzer Celercare® cV5 is not required for personnel, anyone could perform this chemistry analyzer easily. Laboratory technicians can easily, quickly and efficiently master the operation of blood chemistry analyzer, which makes their work can be more convenient.

“Big” but still portable (Power bank capable)- The 8.4-inch capacitive touchscreen and the friendly user interface provides better user experience for operator. Compact design and lightweight is perfect for settings with limited space and mobile use.

Little to no maintenance- Save time and costs plus increase employee compliance to use. The use of xenon lamps as the light source has a theoretical working time of decades.

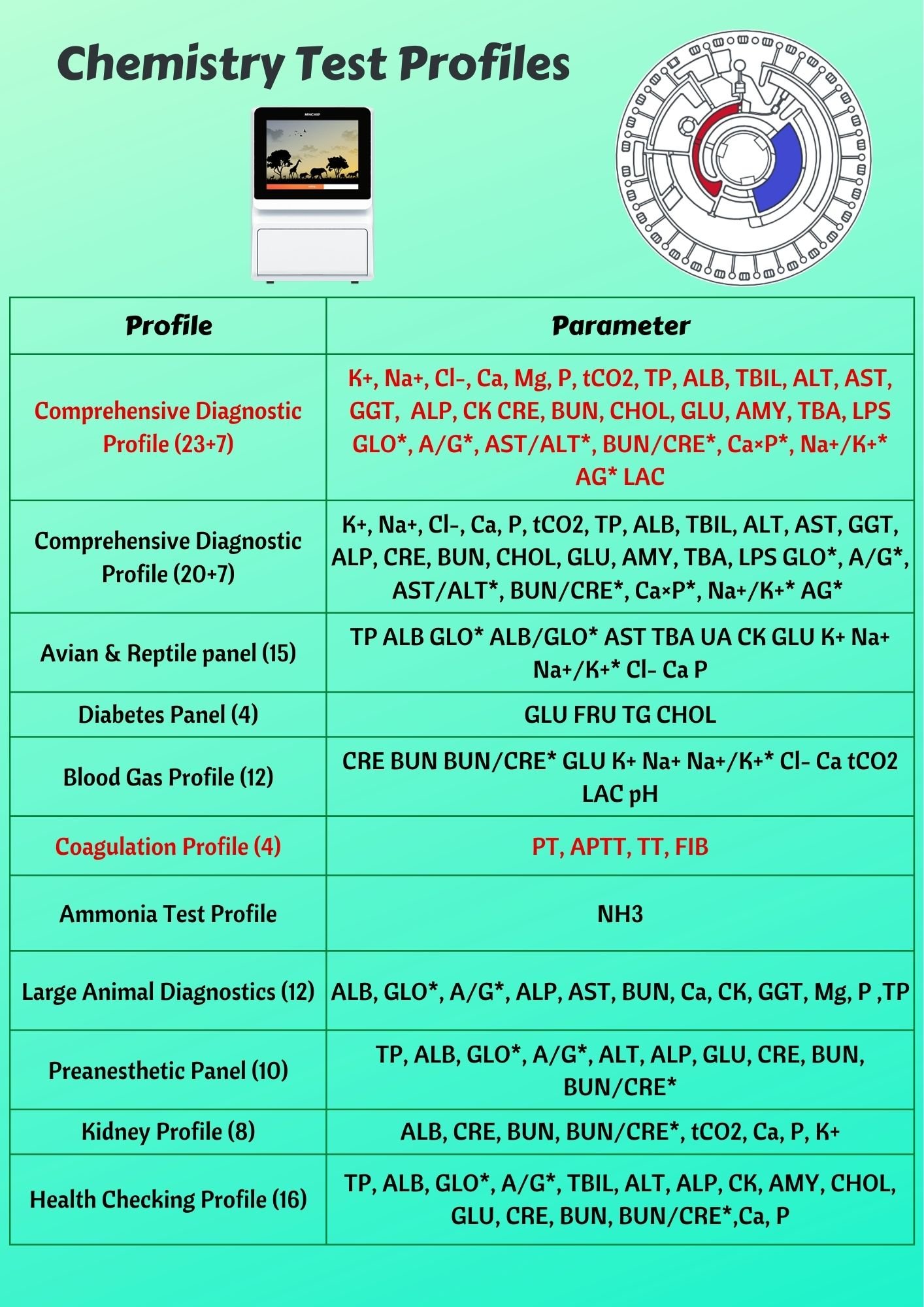

Single-use multi-test panel including chemistry, electrolyte, immunoassay and more- The tests menu of 37 parameters including chemistry, electrolyte, and immunoassay is the broadest of any point-of-care analyzer. It is very suitable for research institutes, veterinary hospitals and other laboratory places. With the efforts of our customer-oriented R&D team, the test parameters will continue to be expanded.

Deliver real-time care to enhance client satisfaction
Caregivers can perform a complete panel of up to 24 chemistry tests on-site in about 7 minutes. It can help veterinary chemistry panel shorten waiting time and complete work more efficiently. Seconds of hands-on time, minutes for treatment solution. Provide clients with immediate answers during their visit and save technician time with load-and-go efficiency.

Detection of sample interference
Indicate the level of hemolysis, lipemia, and icterus, suggest the impact on test results and provide effective information to facilitate the diagnosis and treatment of patients with confidence.

Build in printer
Build in Printer, automatically print reports.

Better visual and operational experience
Better visual experience and easier-to-use capacitive 8.4-inch touchscreen with a more comfortable user interface.

Cost-effective
Provide the most competitive and affordable reagent discs in the industry.

Reagents


Born from space technology, MNCHIP reagent disc is a completely self-contained disposable chemistry panel designed to meet various testing needs. Just 3 drops of whole blood are required to deliver up to 24 precise results.

Operation


1.
Add sample
100μl whole blood, serum or plasma.
2.
Insert disc
Walk-away operation, self-calibrates with every test run.
3.
Read results
Build-in printer, that automatically prints reports.

Technology


Analyser-
Our microfluidic-based blood chemistry device was derived from aerospace technology, which is also used in today’s aerospace industry. After five years of rigorous ground testing, Poincare M will be installed on the Chinese space station launched in 2022 to provide daily blood chemistry tests for astronauts in orbit.

The analyzer is a portable spectrophotometer. The optical system consists of a xenon arc stroboscopic lamp and a beam-splitter/detector capable of reading nine wavelengths. A heater maintains the disc at 37±0.2°C during the reaction portion of the analysis.

Reagent Disc-

The reagent disc is developed based on microfluidic technology. It is an 8 cm diameter consumable containing all the required diluent and dry reagents to perform a panel of tests. The disc contains 30 cuvettes that will be filled with diluted plasma or diluent. The cuvettes have different path lengths to accommodate different reagent sensitivities and analyte concentrations.

Testing-

Pre-measured, lyophilized reagent beads for each chemistry in the panel are placed in the cuvettes at the time of manufacture. To perform a panel of tests, the operator applies around 100μl whole blood directly into a disc. Using centrifugal and capillary forces, the disc meters the required amount of blood, separates the red cells, meters the plasma, meters the diluent, mixes the fluids, distributes the fluid to the reaction cuvettes and mixes the reagents and the diluted plasma in the cuvettes.

The analyzer monitors the reactions simultaneously using nine wavelengths, calculates the results from the absorbance data, and reports the results on the screen and a convenient thermal roll-tape printer.

 Specifications


Dimensions: 260mm(L)×230mm(W)×320mm(H)
Weight: 5.5kg

Sample Type: Anticoagulant additives whole blood, serum or plasma.
Sample Size: 100µL
Test Time: 7 minutes

Quality Control Features: Built-in real-time Quality Control (rQC®) system
Communication: Bi-directional input/output
Interfaces: WIFI, USB, Bluetooth.
Memory Capacity: Up to 50,000 patient and quality control results.

Consumables: 7.8cm in diameter and 0.68cm thick, single-use, self-contained plastic chemistry reagent discs. Each disc contains all reagents needed to perform a panel of tests on a single sample.

Data Input Display: 8.4 inch capacitive touchscreen
Print Report: Built-in thermal printer, External Printer via MNCHIP Medical Data Management Platform.
Mode of Operation: Continuous
Ambient Temperature: 10~30℃(50–86 ºF), indoor use.
Power Requirements: 120 VA
Main Supply Voltage: 100-240 volts AC, 50-60 Hz.
Humidity: 40%~85%
Reaction Temperature: 37℃±0.2℃
Power Bank: Capable
